CHARTER-LEA Grand Tour Single Speed Crankset in PVD or Raw Steel Fixings

Description

Technical Specifications:
Dimensions:
Crank Arms – 170mm (JIS Square Taper)
Recommended Bottom bracket – 110mm
Chainrings – 48Tooth, 40 Tooth  or 36 Tooth
Q Factor – 142mm

Materials:
Anodised Aluminium 7050 T7451 (Crank Arms)
Anodised Aluminium 7075 T6 (Chainrings)
316 Stainless steel (Nuts, Bolts and Dust Caps)

Finish:
Machined Aluminium Black (Crank Arms and Chainrings)
Machined Steel (Nuts, Bolts and Dust Caps,  Raw)

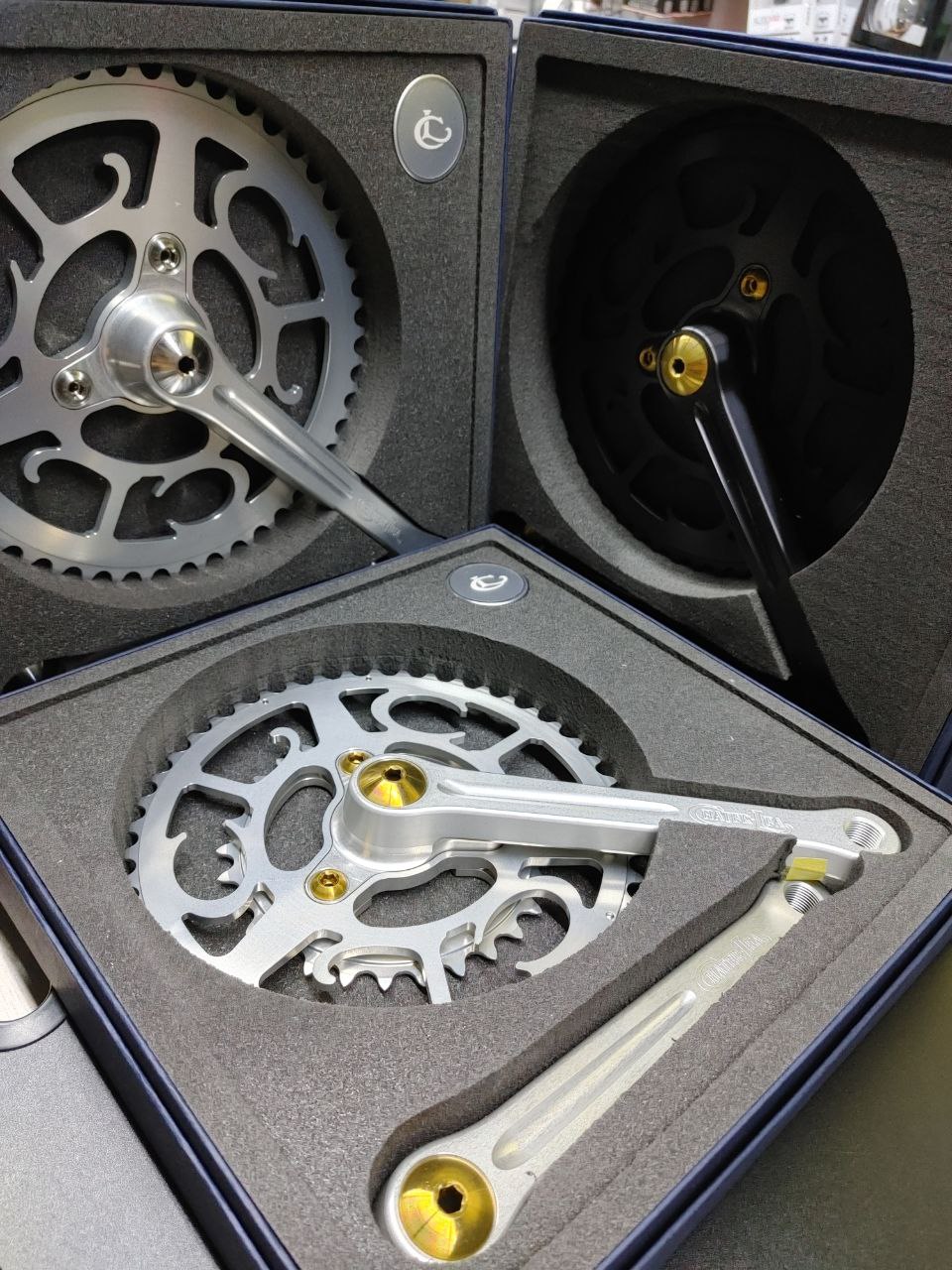

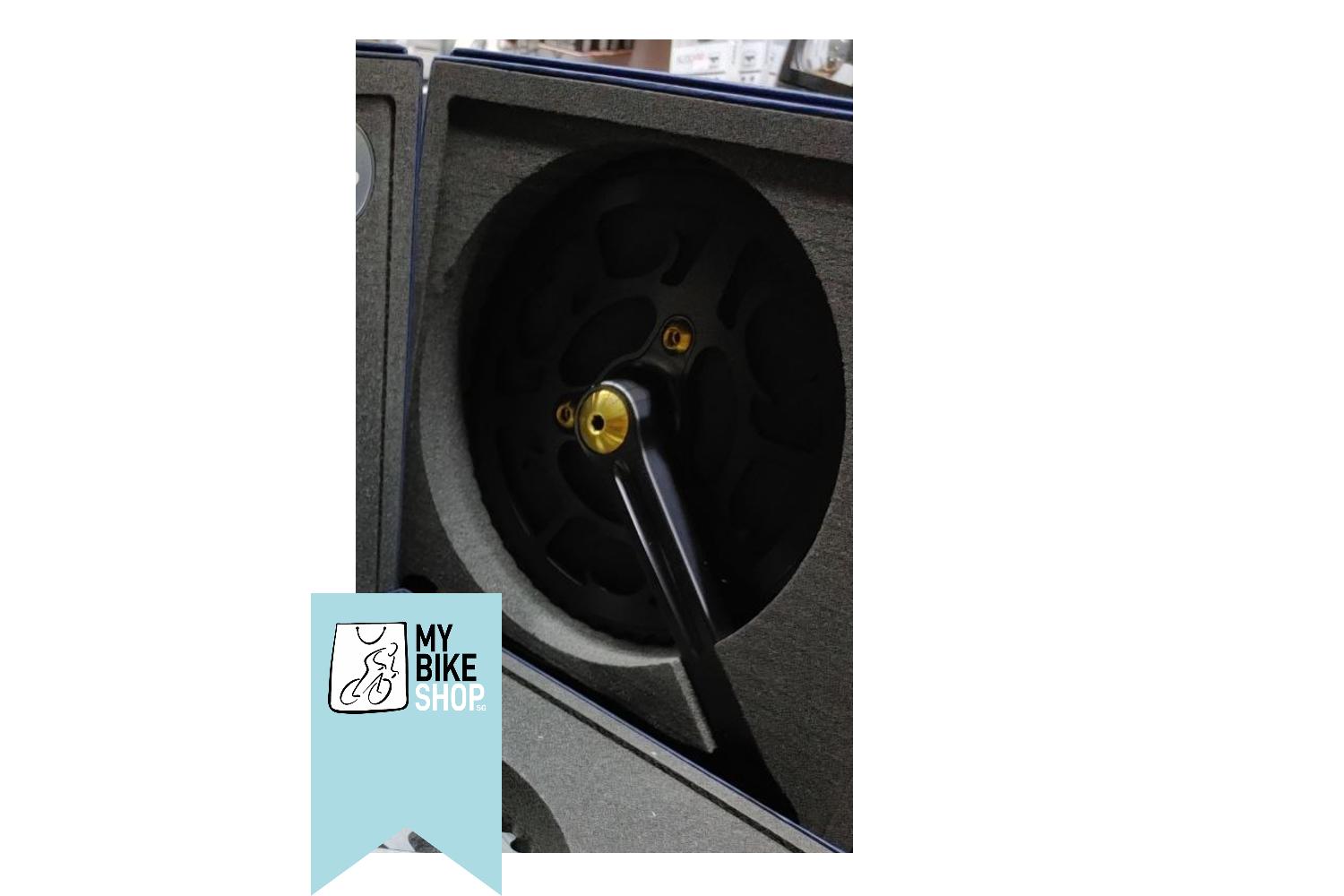

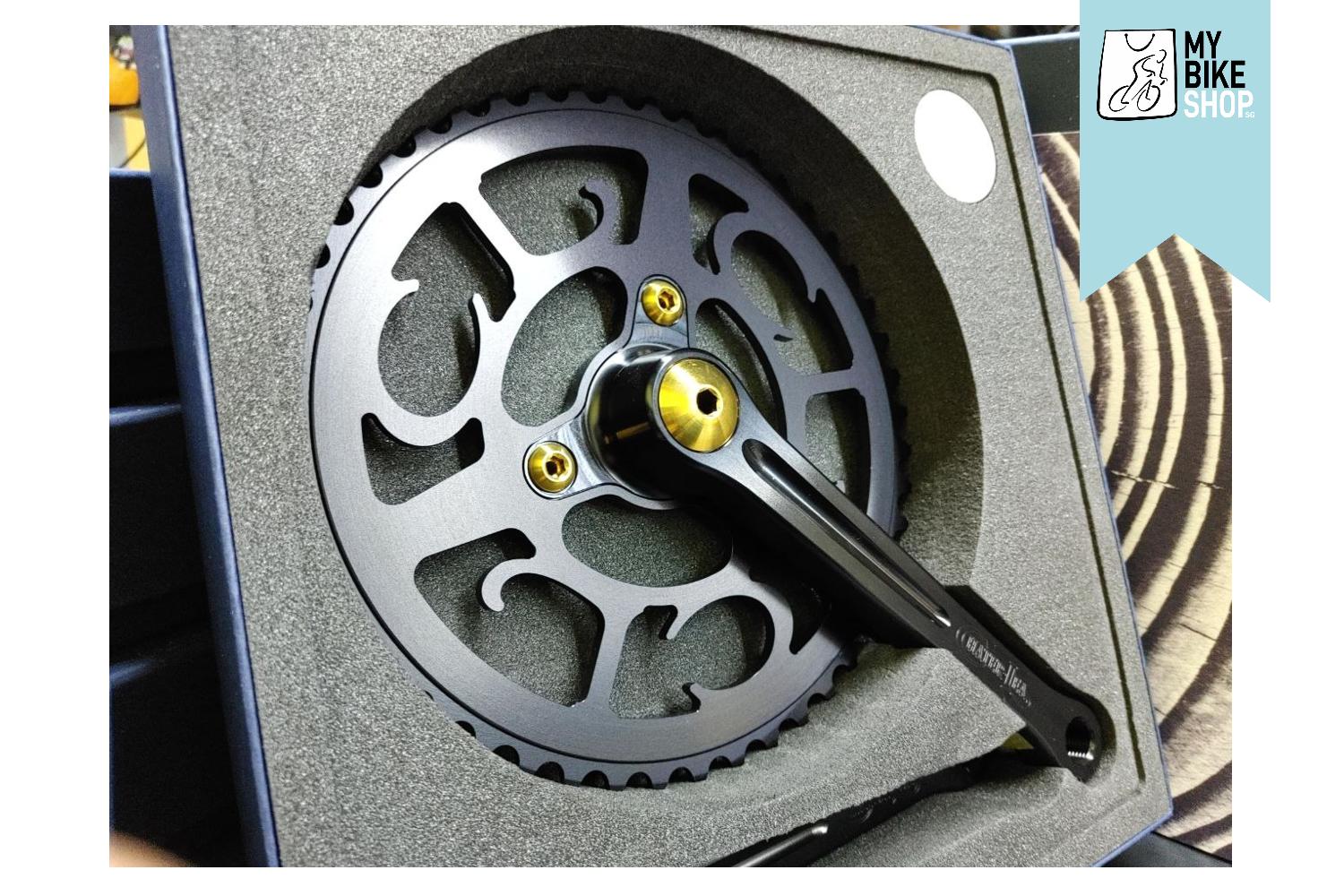

PVD finishings for Bolts and Dustcaps in the picture below.
